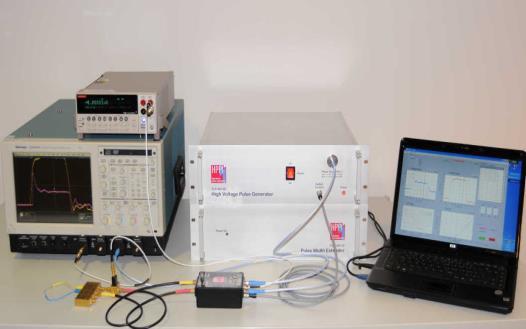

전송선 펄스 인가 정전기 평가 시스템
- 구축연도
- 2025년 구축
- 약칭
- -
- 제조사
- HPPI
- 모델명
- TLP-12010C
- 담당자명
- KTL 김상활 주임연구원
- 문의전화
- 02-860-1546
장비 사용 용도
반도체의 정전기 보호 대책, 회로 등이 공정에 따라 설계한 범위에서 정상적으로 동작하는지 시험평가하기 위해사용되며 정전기 발생시 설계한 정전기 회로가 견딜 수 있는 최대 전류, 전압, 저항값 등의 데이터 정보를 획득
주요스펙
- RiseTime number 6 (0.1 / 0.3 / 0.6 / 1 / 5 /10ns); 0.1ns only up to 40A possible
- PulseWidth 8 (1 / 2.5 / 5 / 10 /25 / 50 / 75 / 100ns) for up to 40A & 100ns for 40A up to 120A with external cable
- Pulse extender : 5 / 10 / 50 / 100 / 200 / 500ns
- High current wafer-level and package-level 98Ω HMM probing with grounded DUT
- Built-in high surge 48Ω pulse reflection suppression resistor up to 80 A peak
- Fast rise time due to low inductance GND loop
- Variable pitch from 50 μm to 5 mm
- 8" Wafer supporteye piece or monitoring through MonitorAnti-Vibration TablePositioner * 5EADark box
- Voltage impulse 1.2/50μs IEC60060-1, IEC61180-2Test level 22.5 kV. Requires TC-ST.
- 8GHz 4CH Oscilloscope
- Insulation test with 1.2/50 on semiconductor
